UltraSIPS Standard Details

Reference drawings for common SIP joints, splines, and interfaces.

UltraSIPS Standard Details

How to use this pack

Use these drawings when reviewing layouts or coordinating on site. Each SD code matches the numbering in the standard detail pack, and the exact detail name appears in the image header.

SD-01

Section detail SD-01

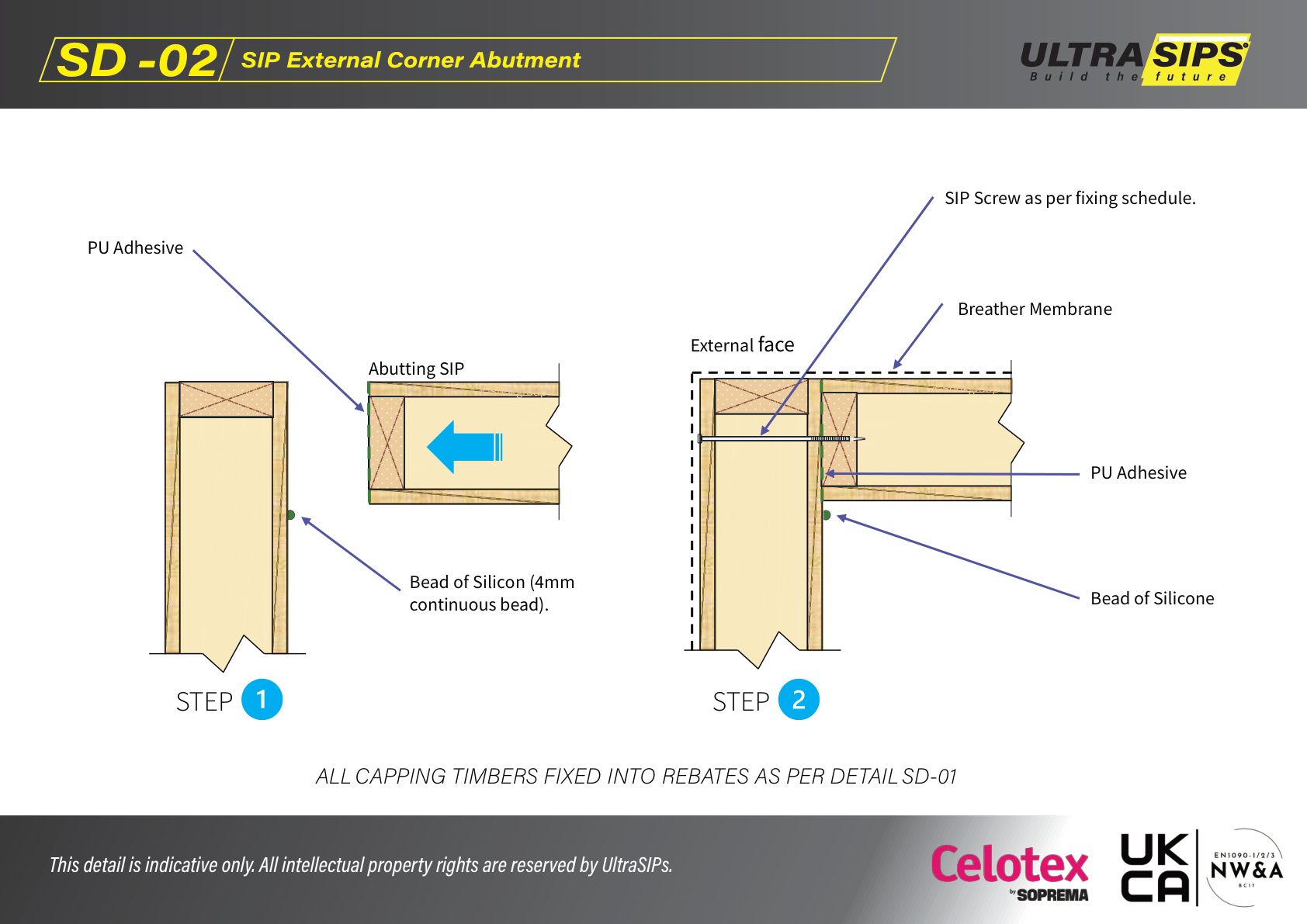

SD-02

Section detail SD-02

SD-03

Section detail SD-03

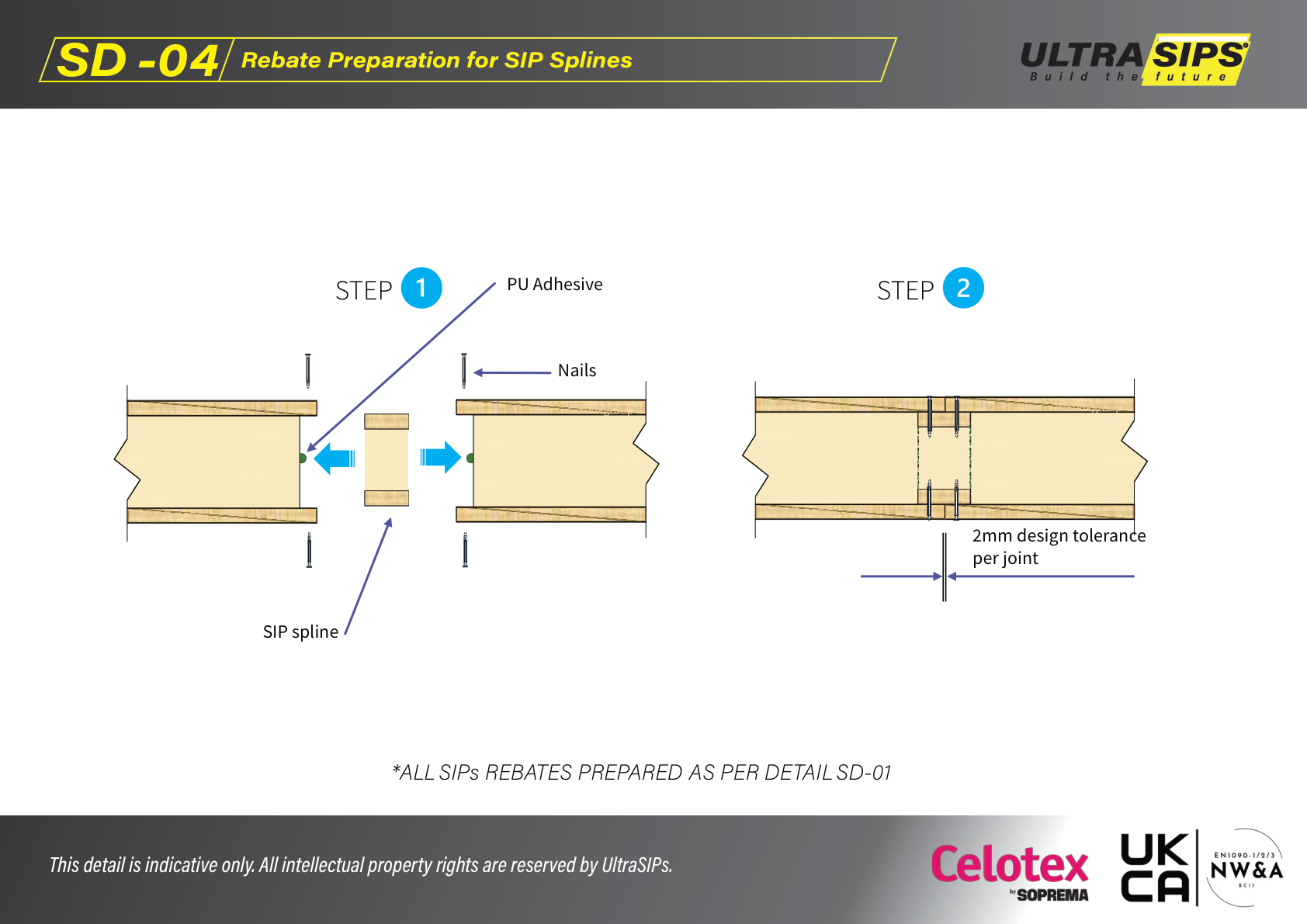

SD-04

Section detail SD-04

SD-05

Section detail SD-05

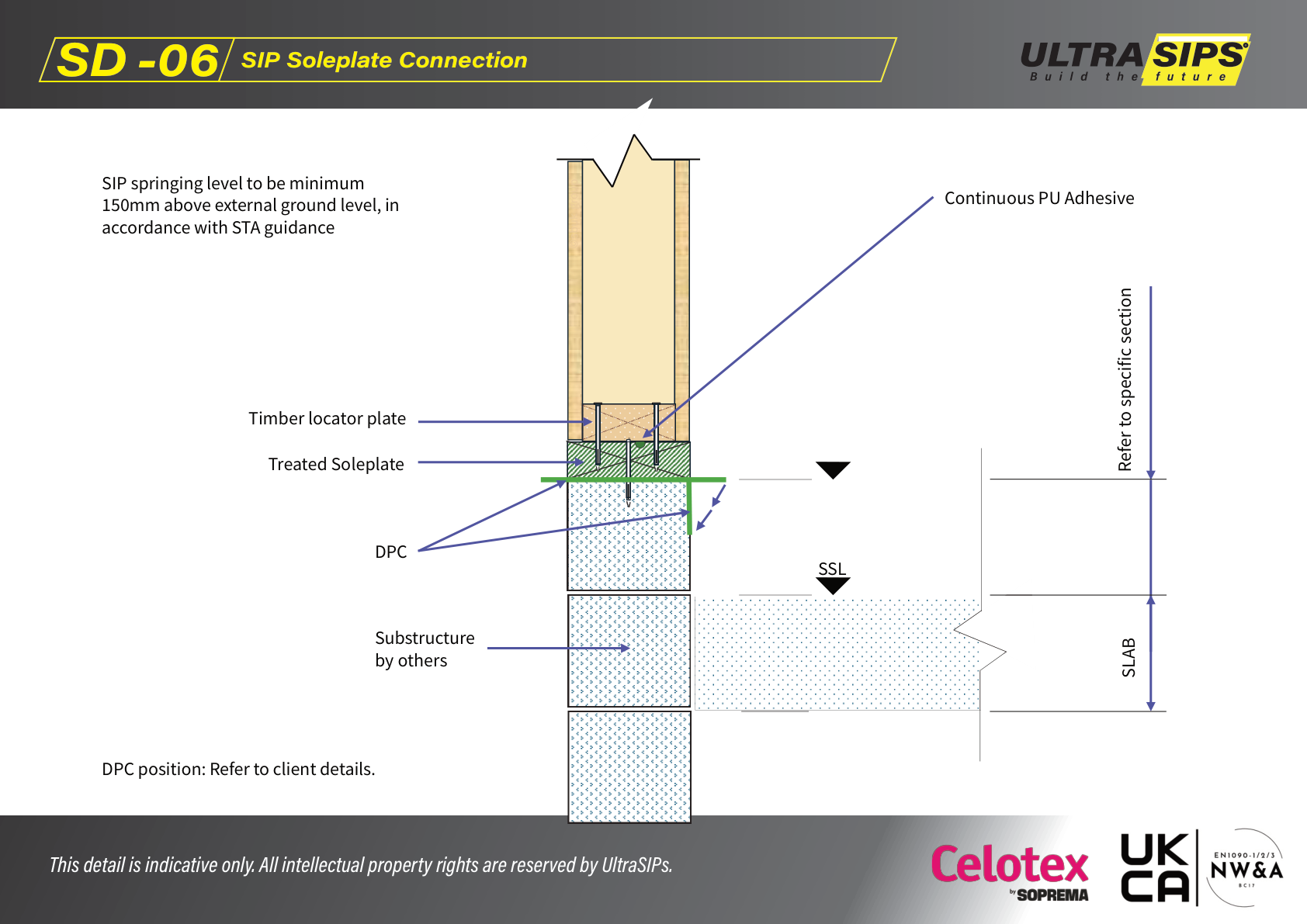

SD-06

Section detail SD-06

SD-07

Section detail SD-07

SD-08

Section detail SD-08

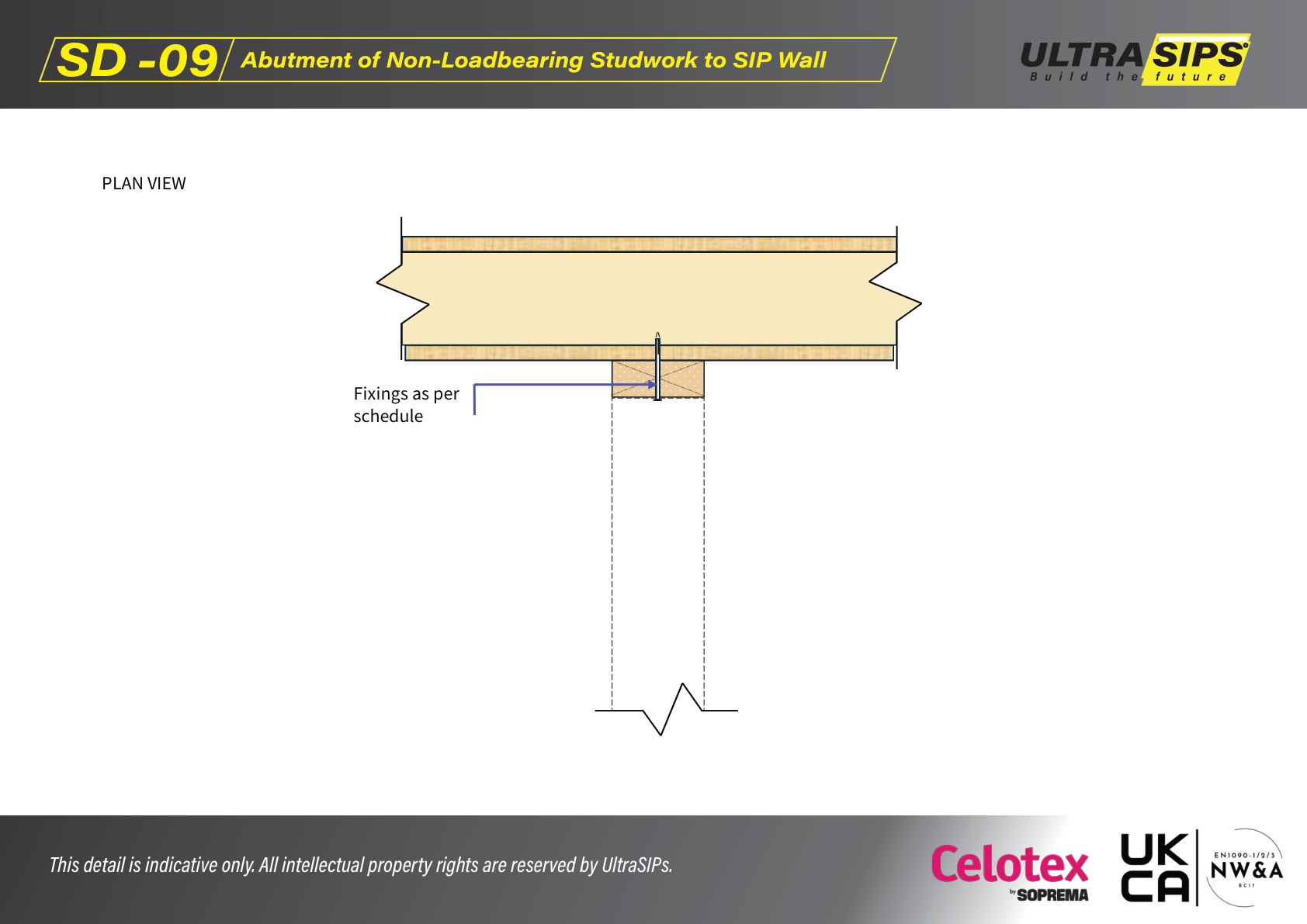

SD-09

Section detail SD-09

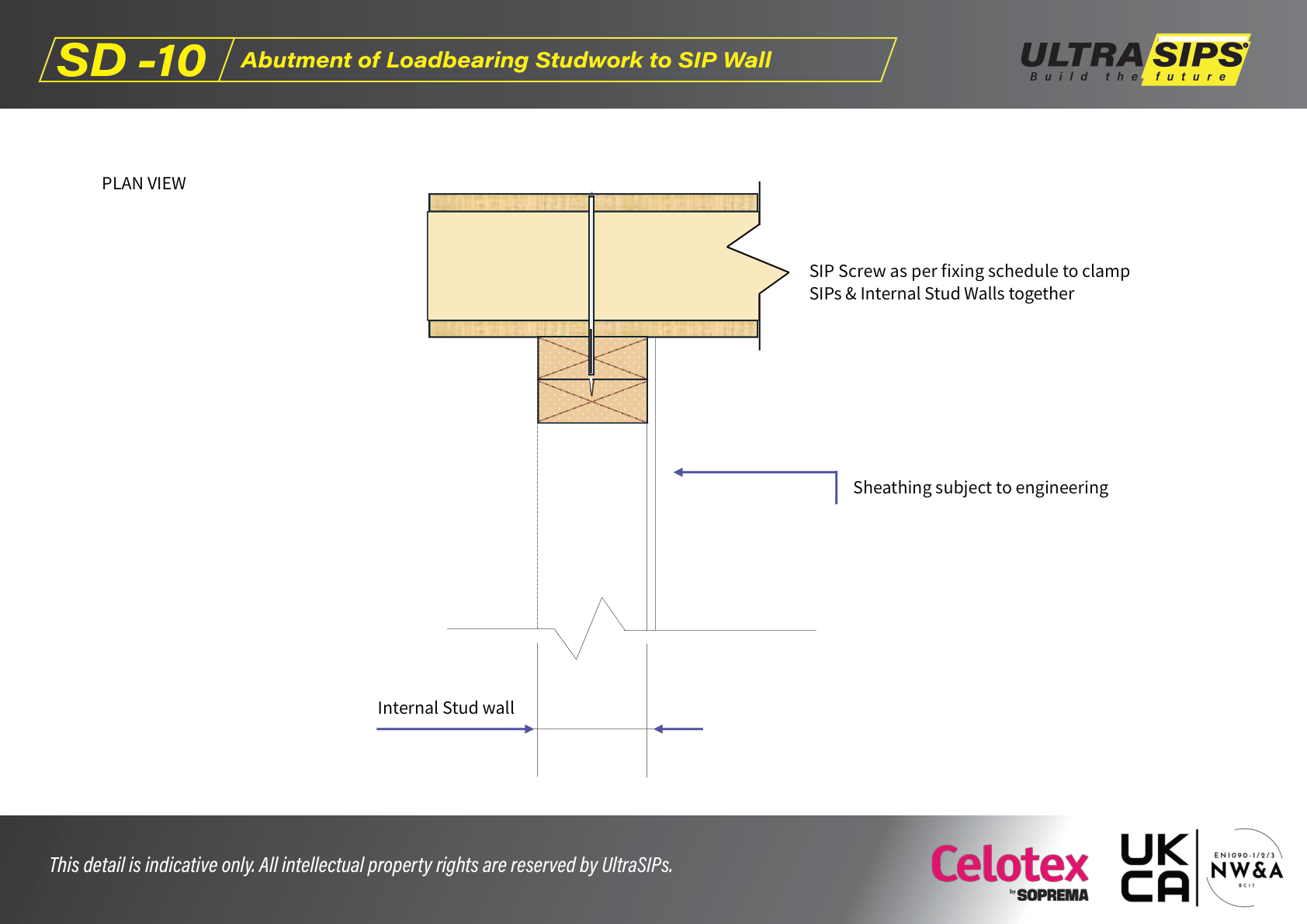

SD-10

Section detail SD-10

SD-11

Section detail SD-11

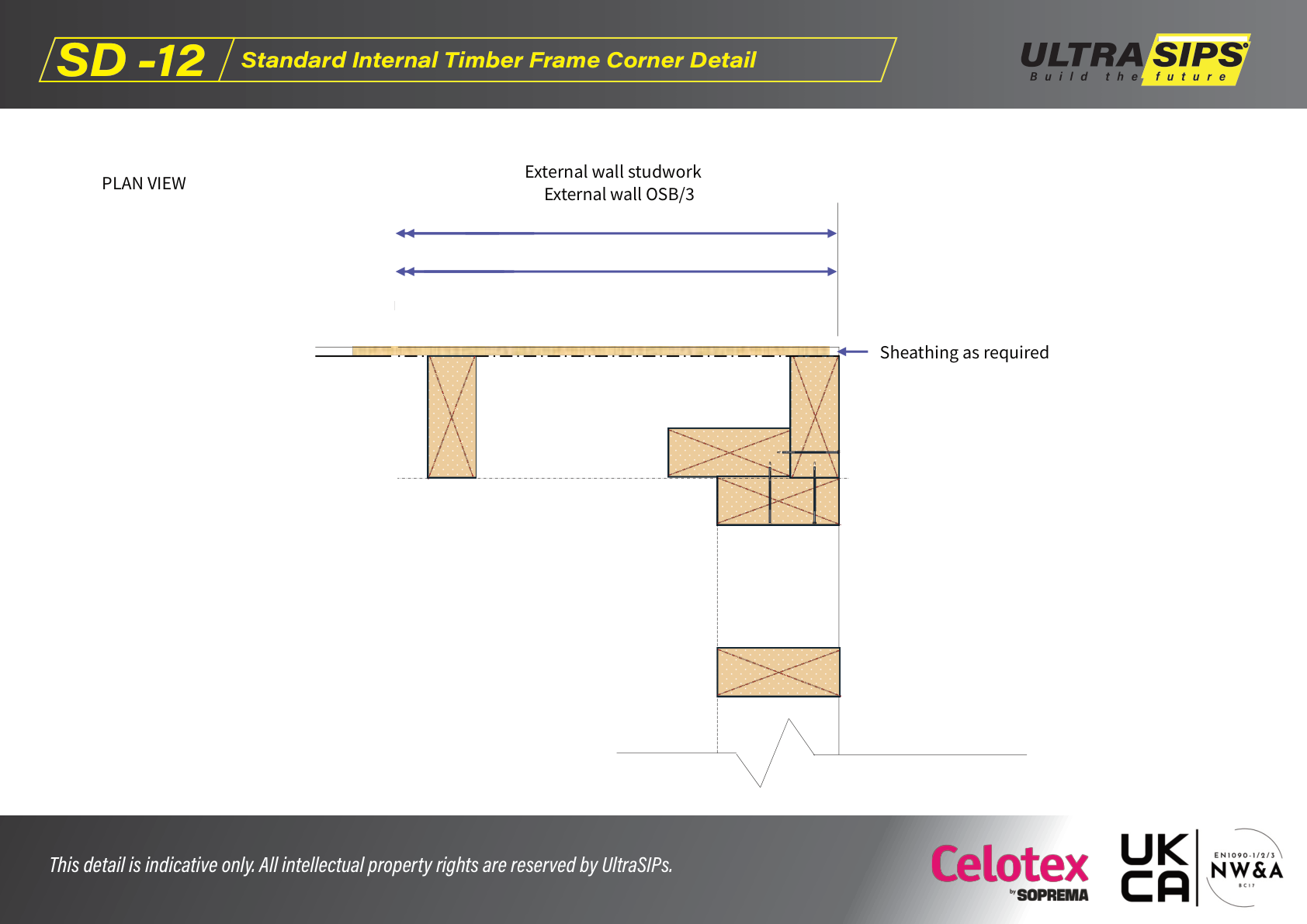

SD-12

Section detail SD-12

SD-13

Section detail SD-13

SD-14

Section detail SD-14

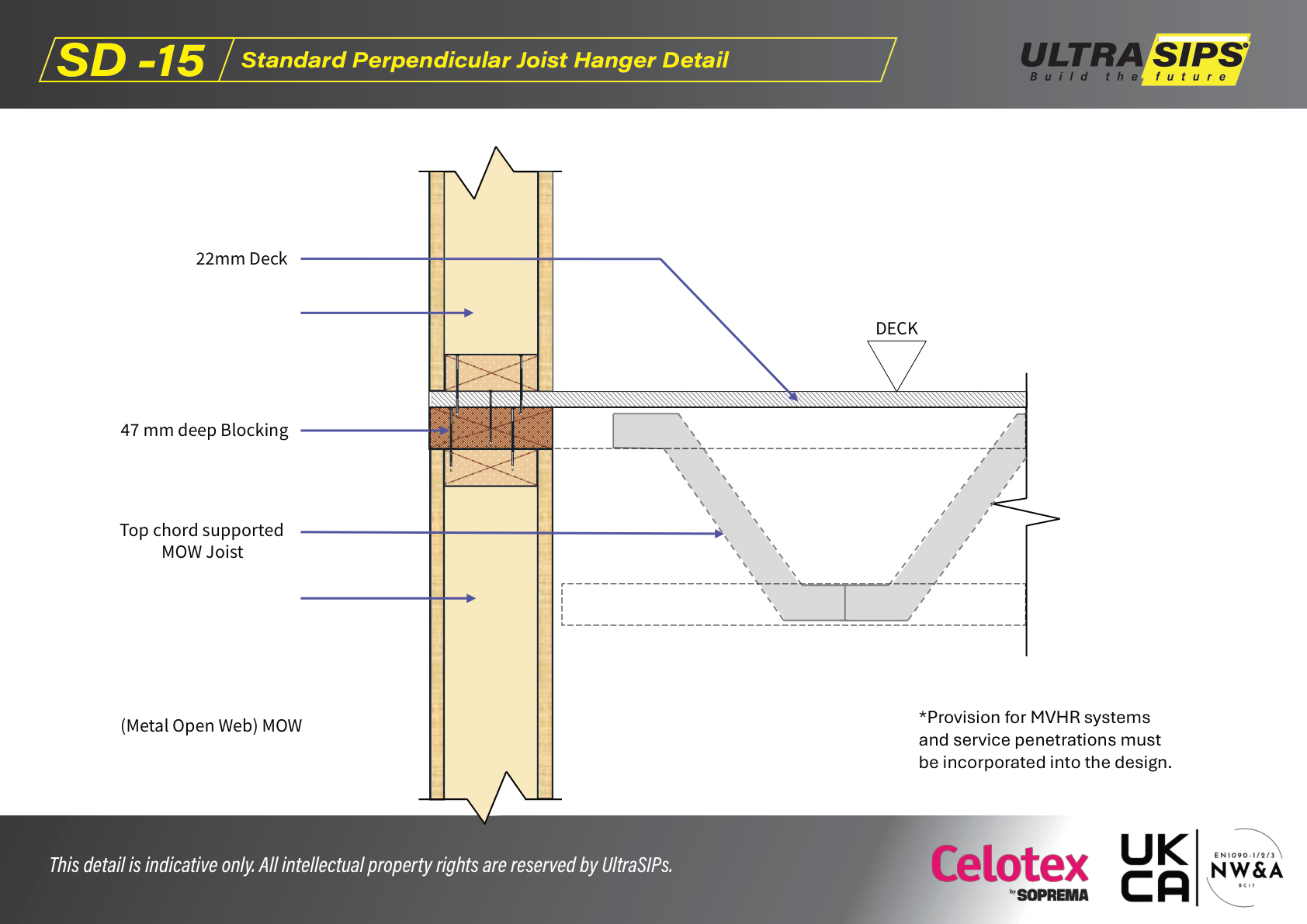

SD-15

Section detail SD-15

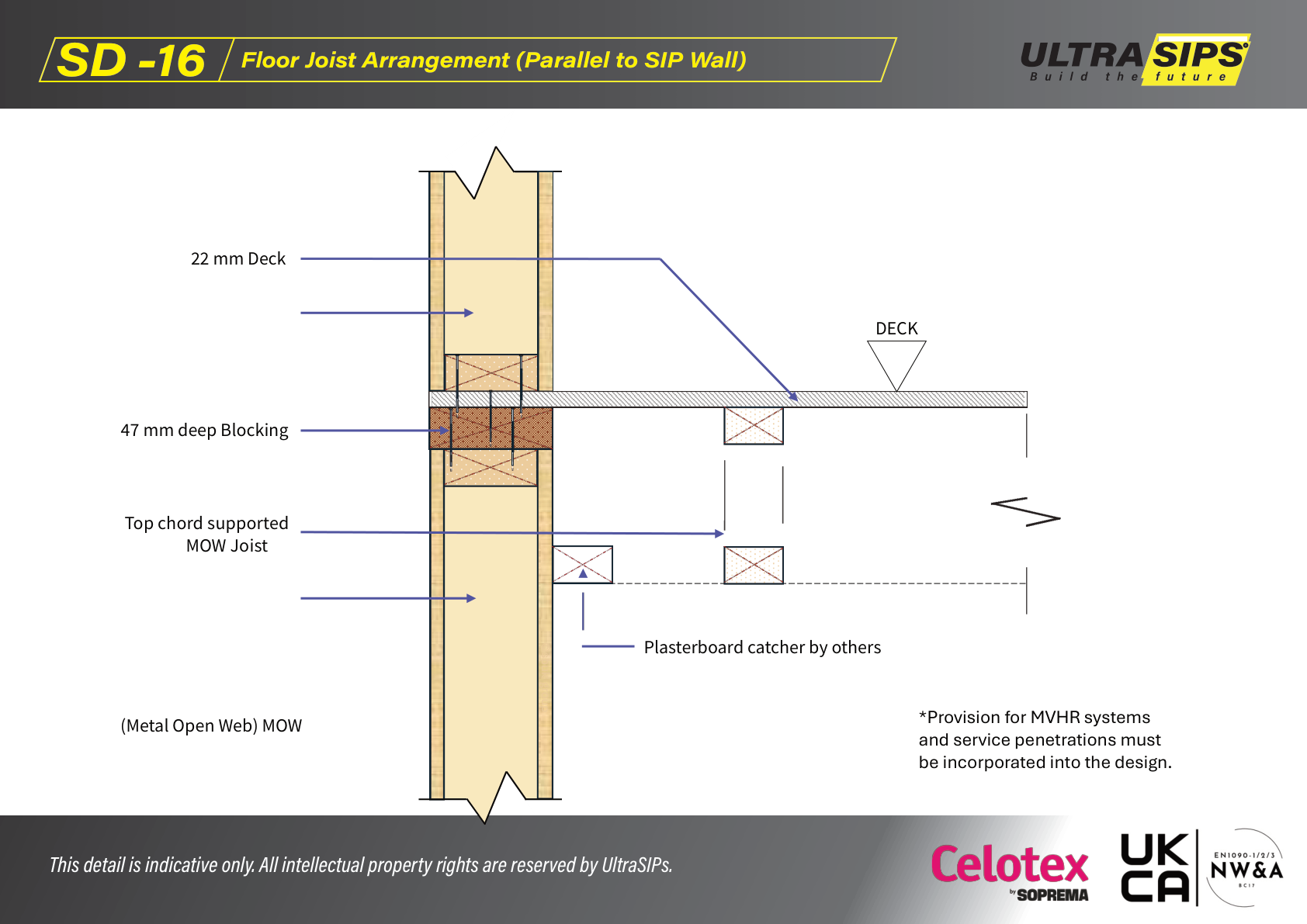

SD-16

Section detail SD-16

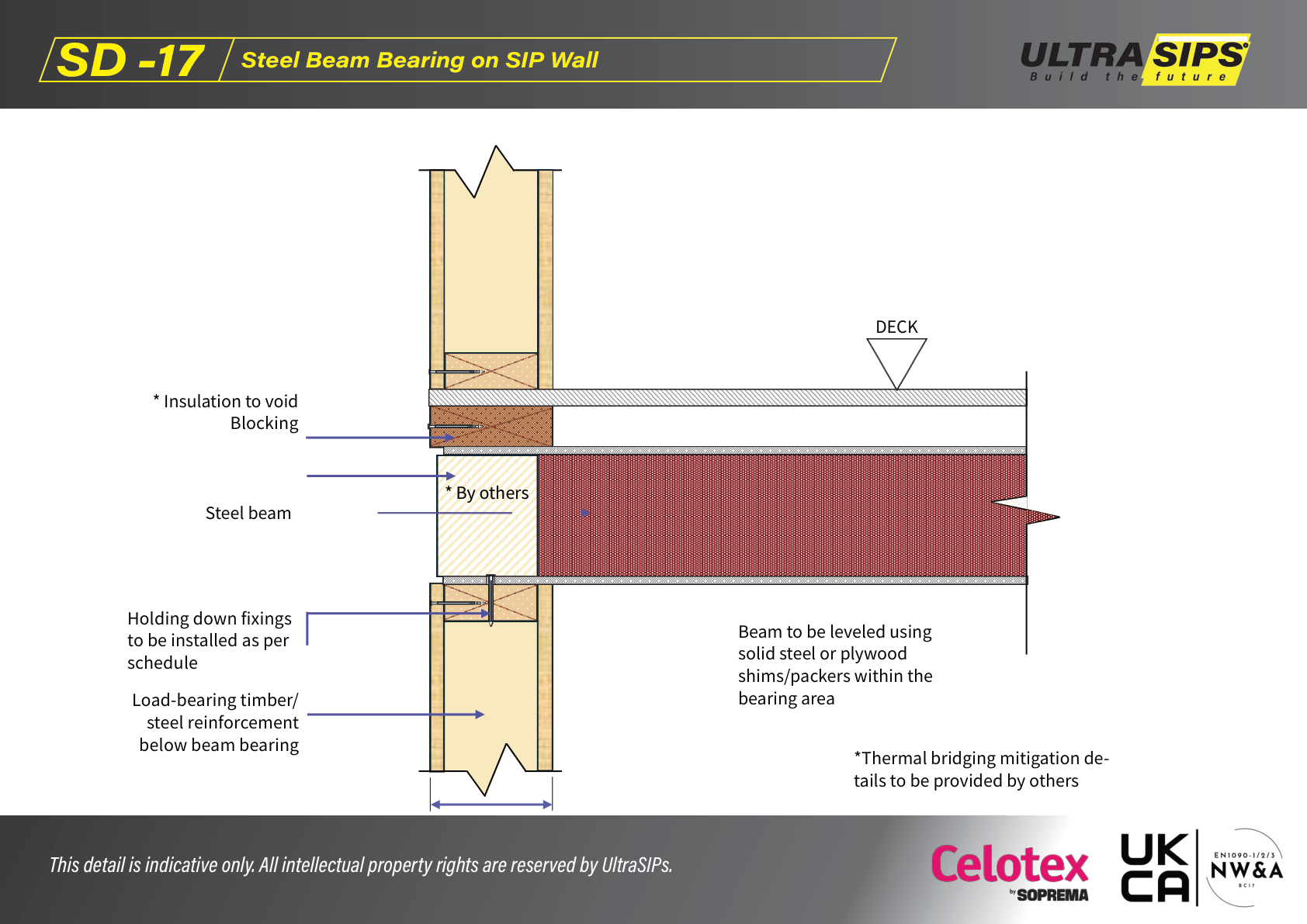

SD-17

Section detail SD-17

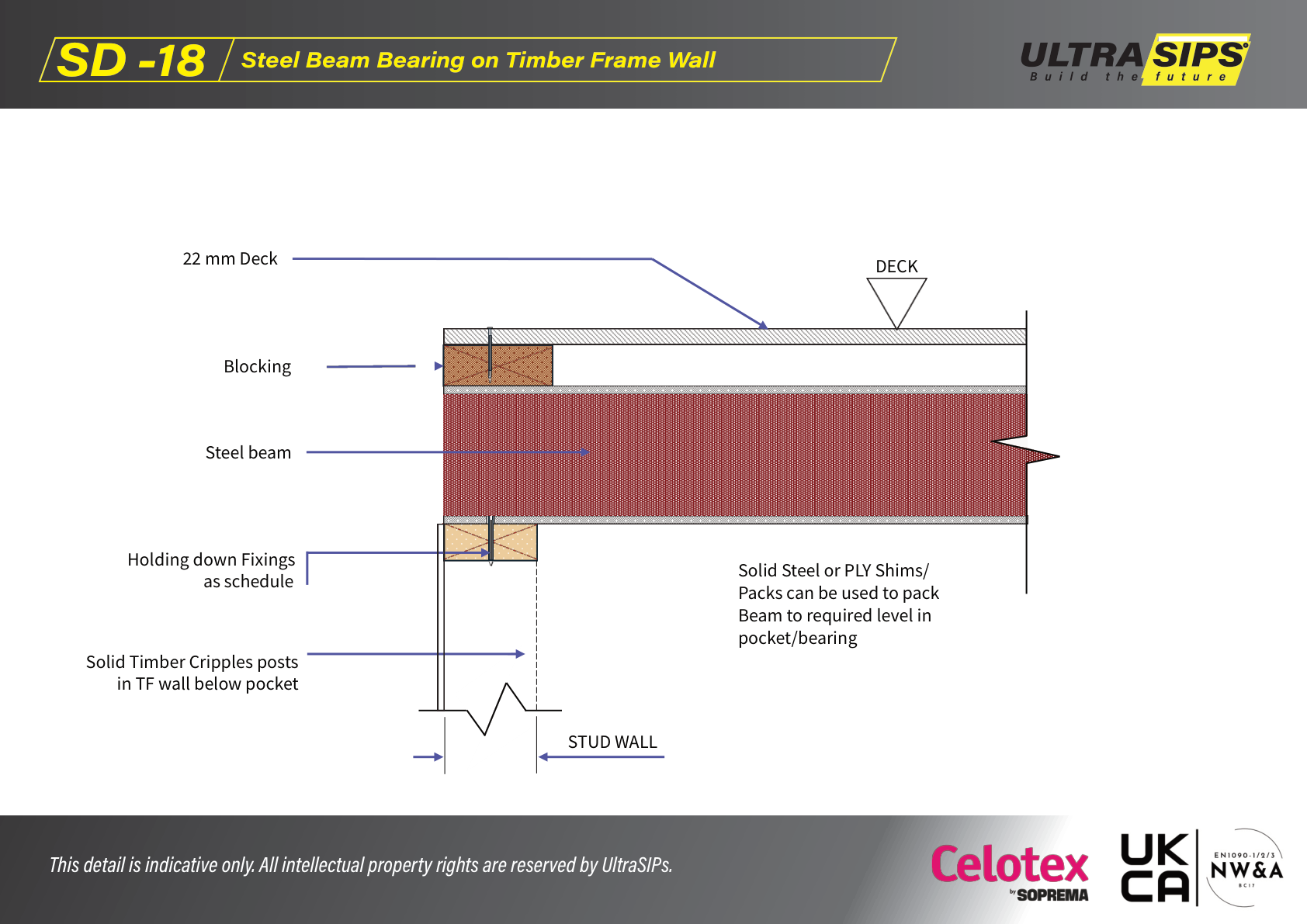

SD-18

Section detail SD-18

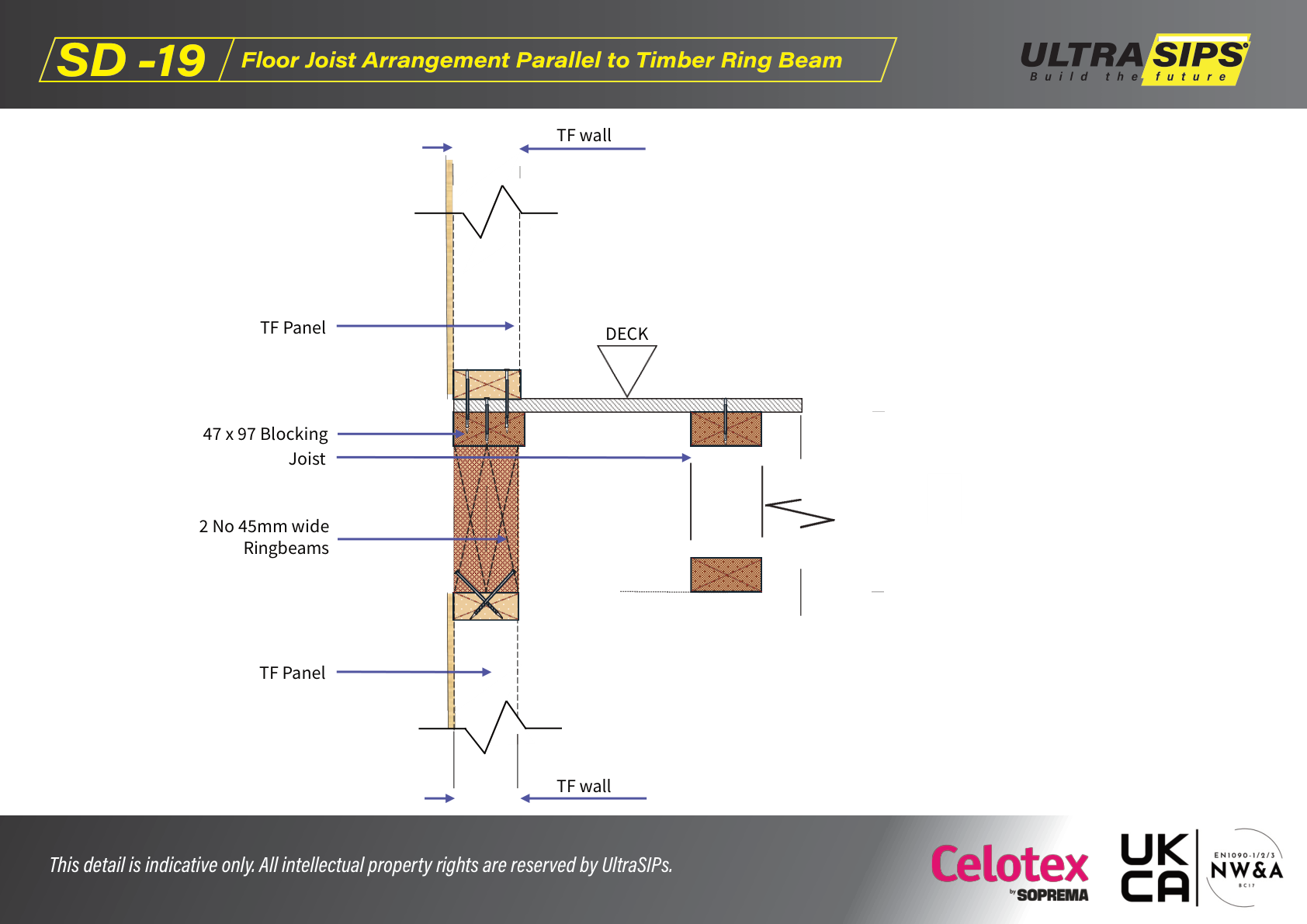

SD-19

Section detail SD-19

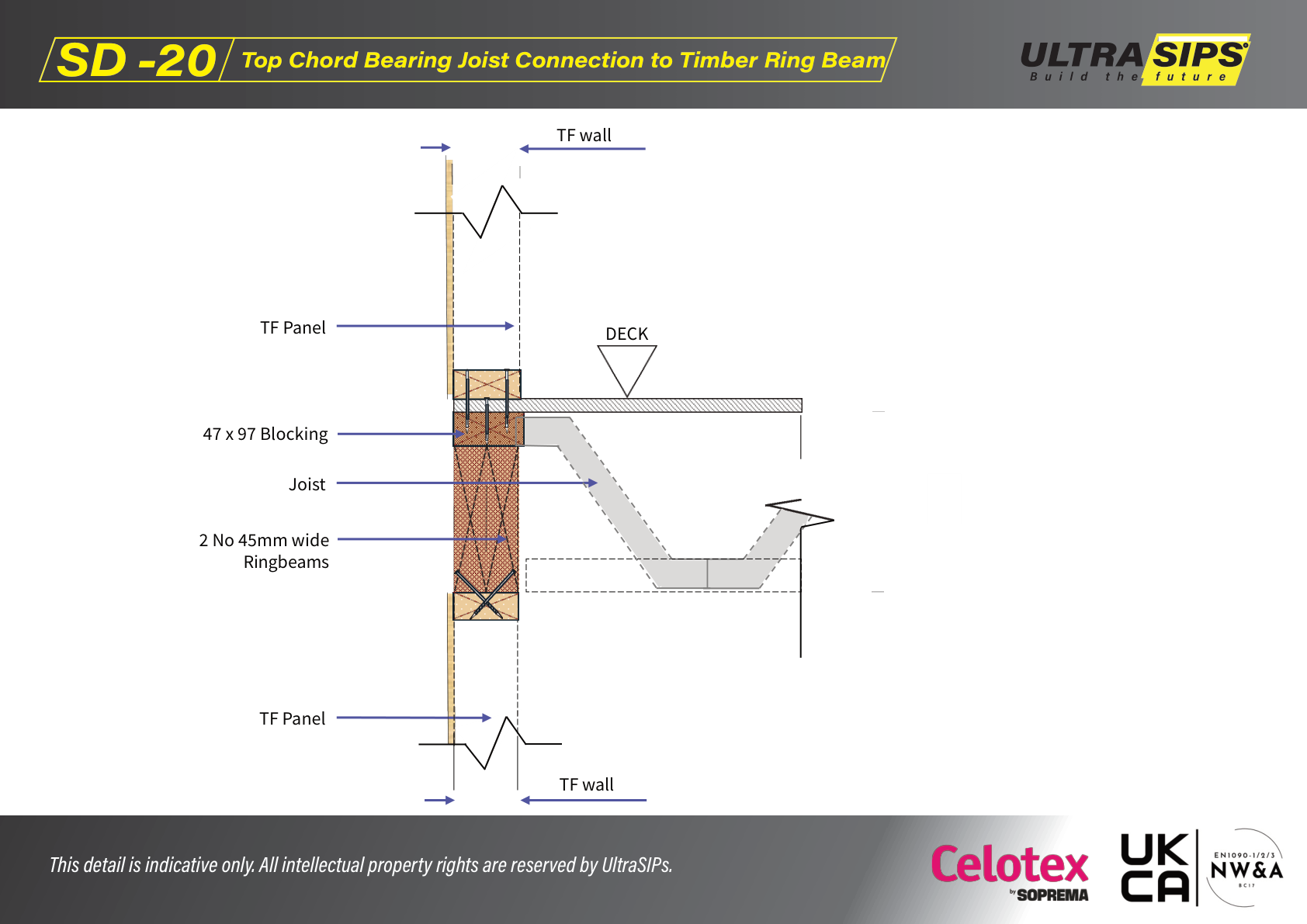

SD-20

Section detail SD-20

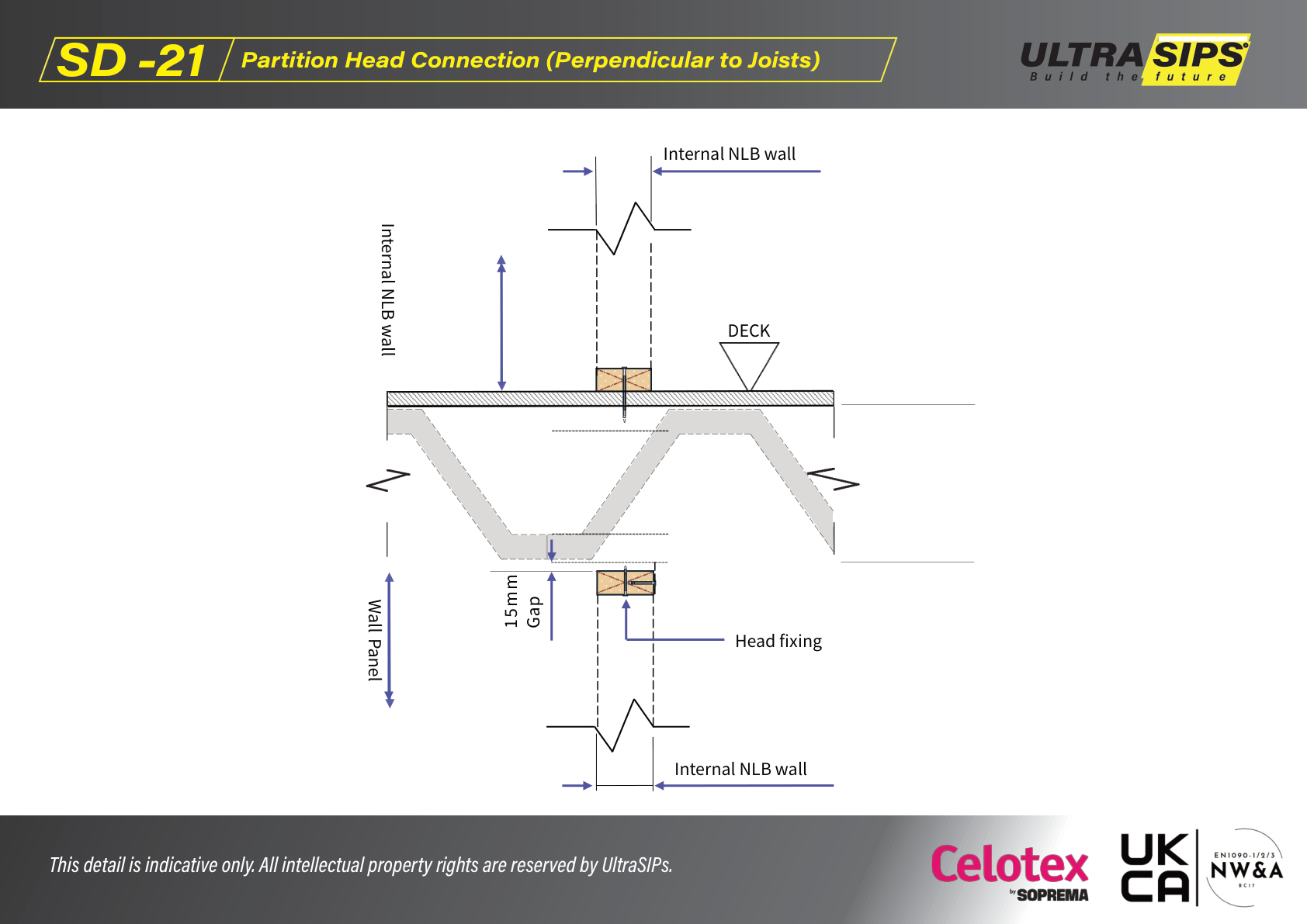

SD-21

Section detail SD-21

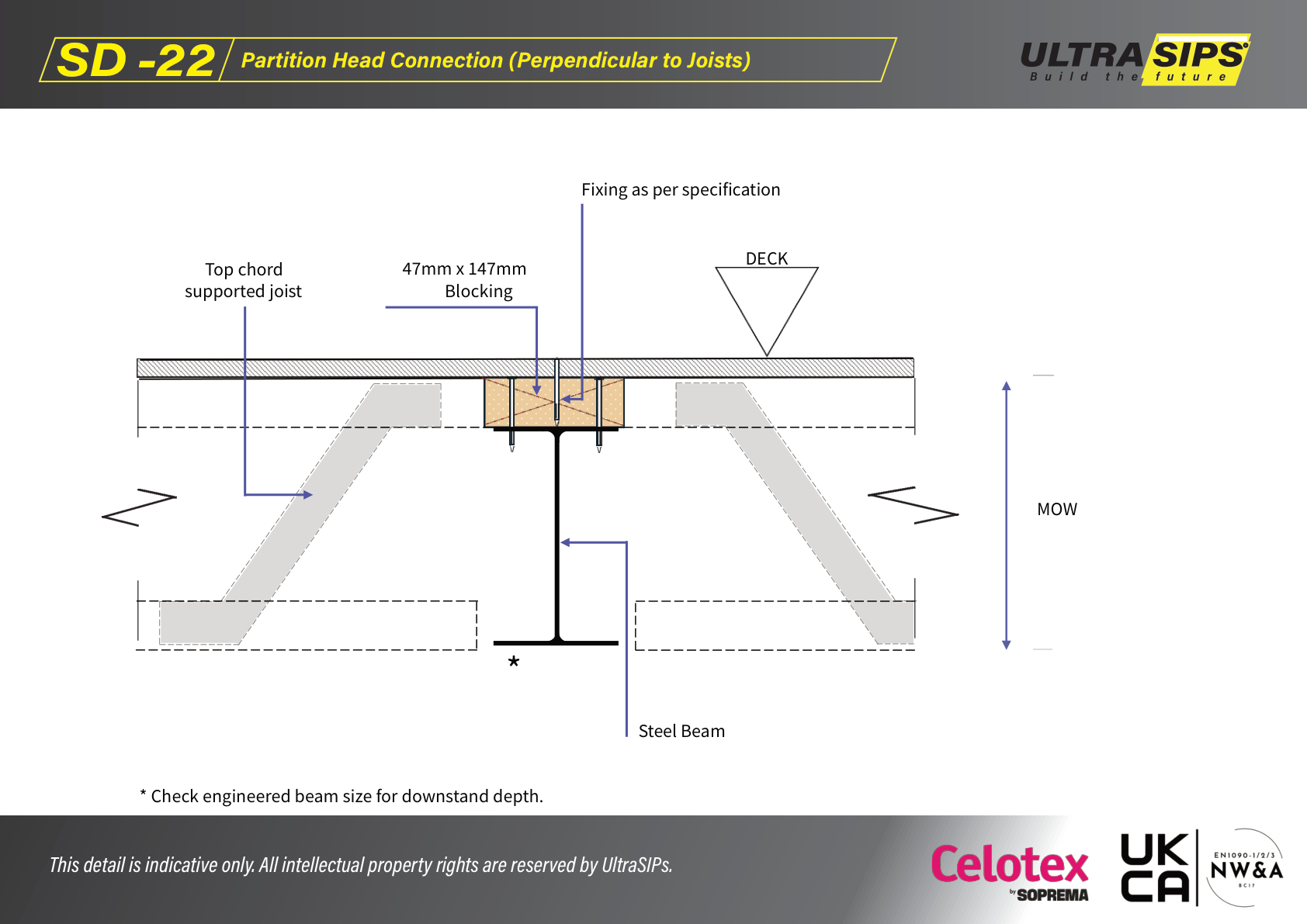

SD-22

Section detail SD-22

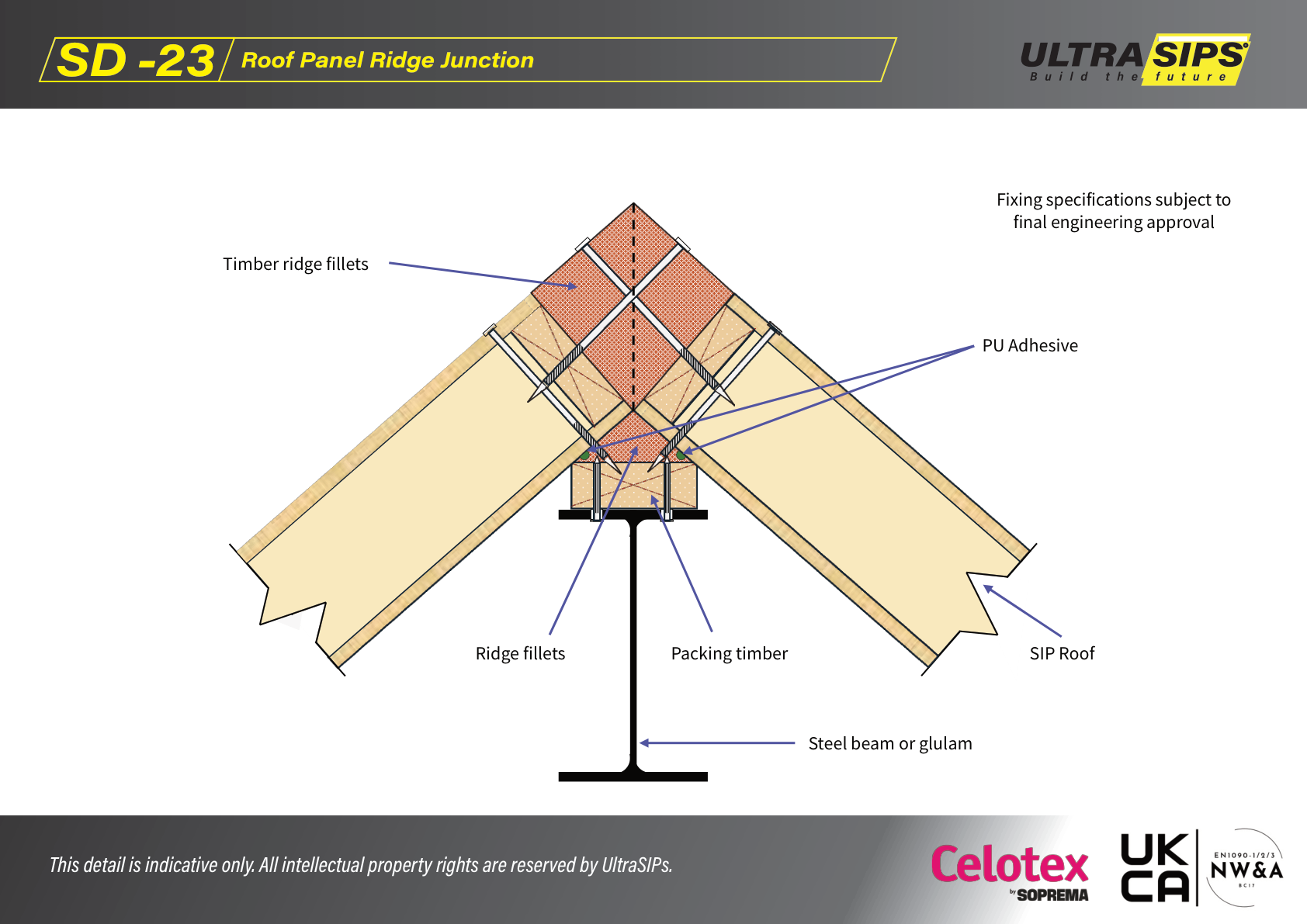

SD-23

Section detail SD-23

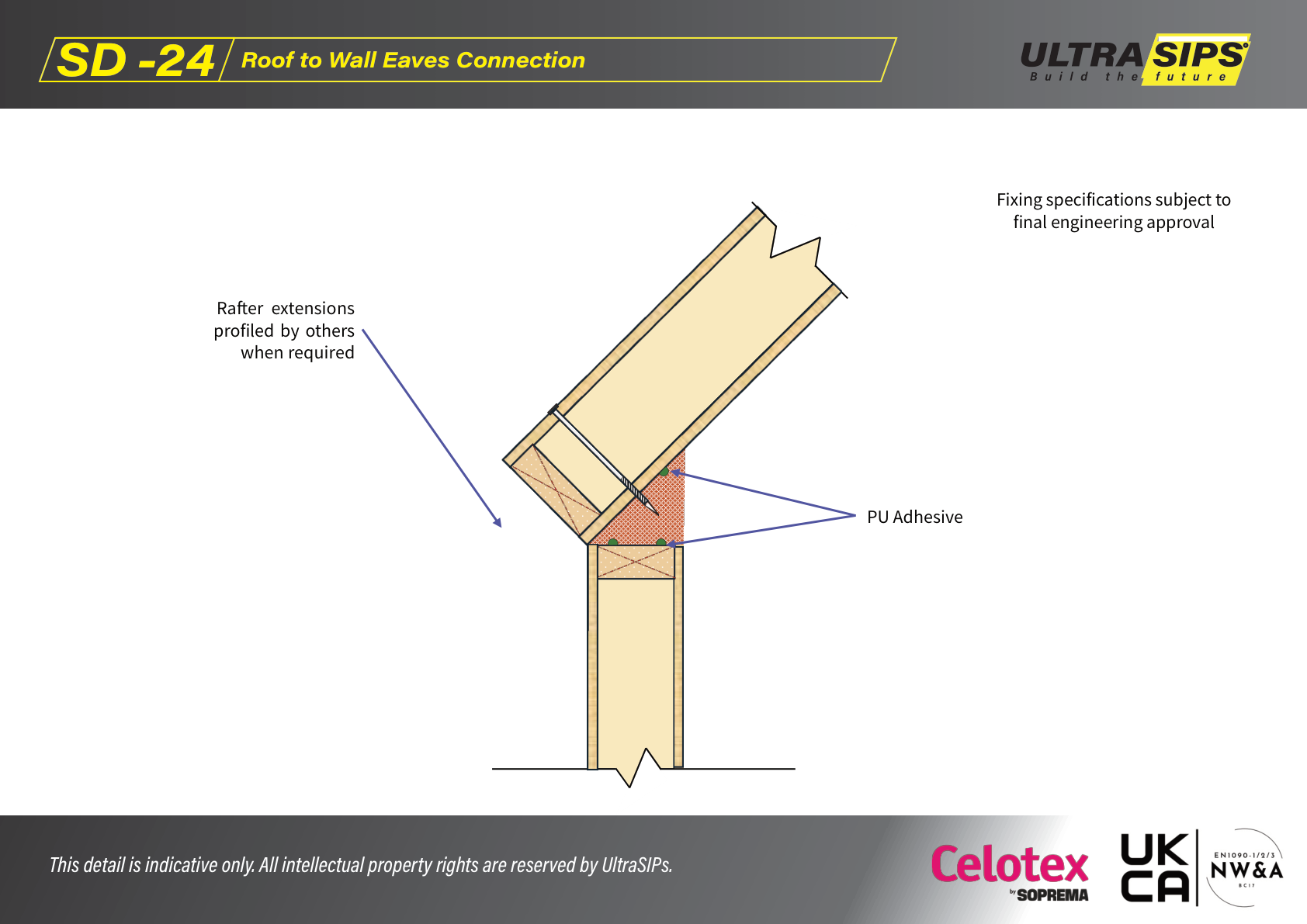

SD-24

Section detail SD-24

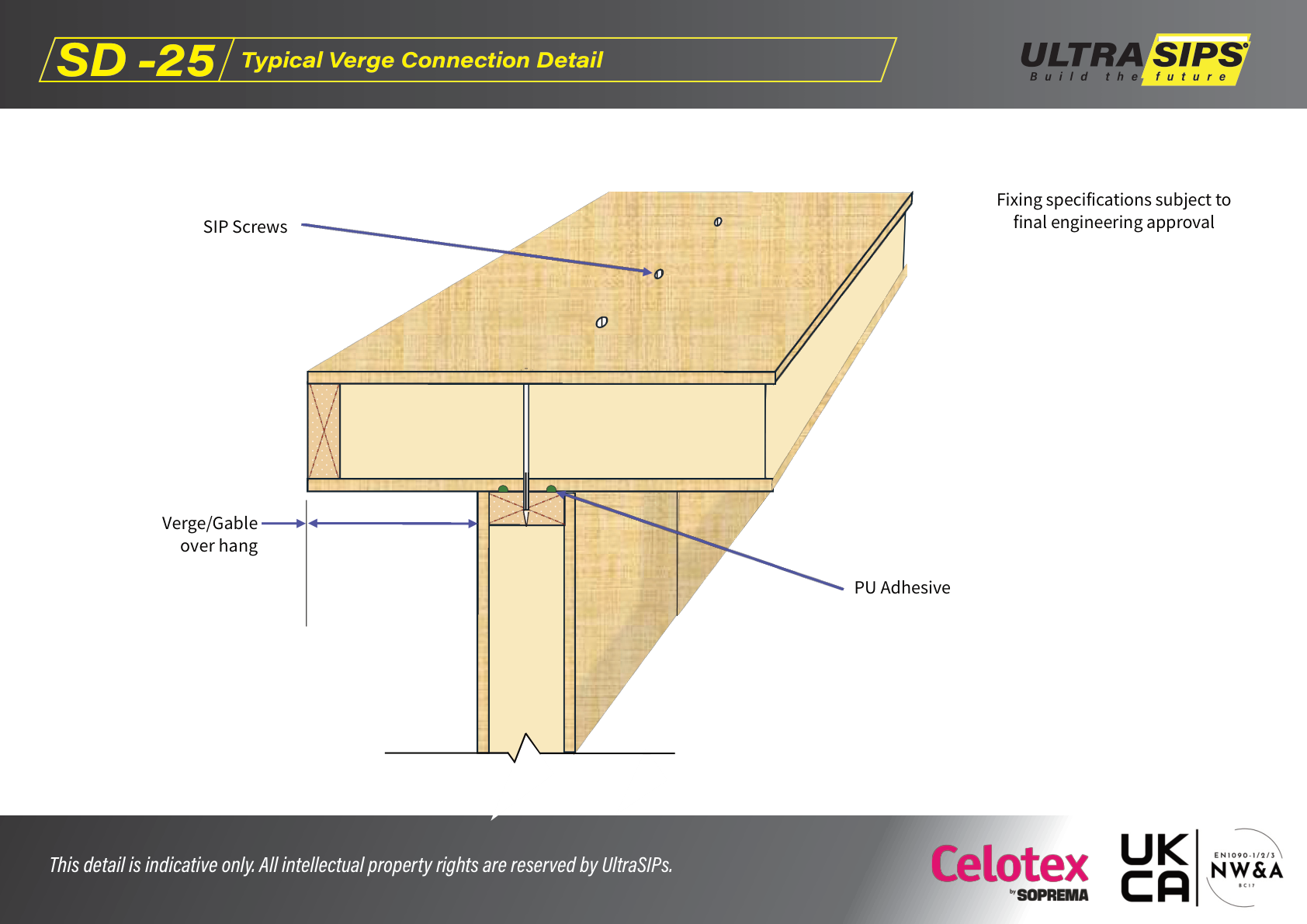

SD-25

Section detail SD-25

SD-26

Section detail SD-26

SD-27

Section detail SD-27

SD-28

Section detail SD-28
